VLX 500 Single & Double Hung Window

VLX 500 Single & Double Hung Window in Lantana, FL | Sightline Windows & Doors Lantana

The VLX 500 Single & Double Hung Window is a classic vertical-glide aluminum window built for homeowners who want clean lines, easy maintenance, and proven durability in South Florida’s demanding climate. At Sightline Windows & Doors Lantana, we’re an authorized ViewLux installation partner, which means every VLX 500 we sell and install carries full manufacturer warranty protection and is spec’d to your exact opening. Whether you’re replacing original windows in a Hypoluxo Isles ranch, upgrading a coastal condo near Lake Worth Lagoon, or building new in Lantana, this series delivers the tilt-in convenience and thermal performance modern buyers expect. Call (561) 461-2062 to schedule your free on-site measurement and written quote.

Call (561) 461-2062

Product Overview - VLX 500 Single & Double Hung Window

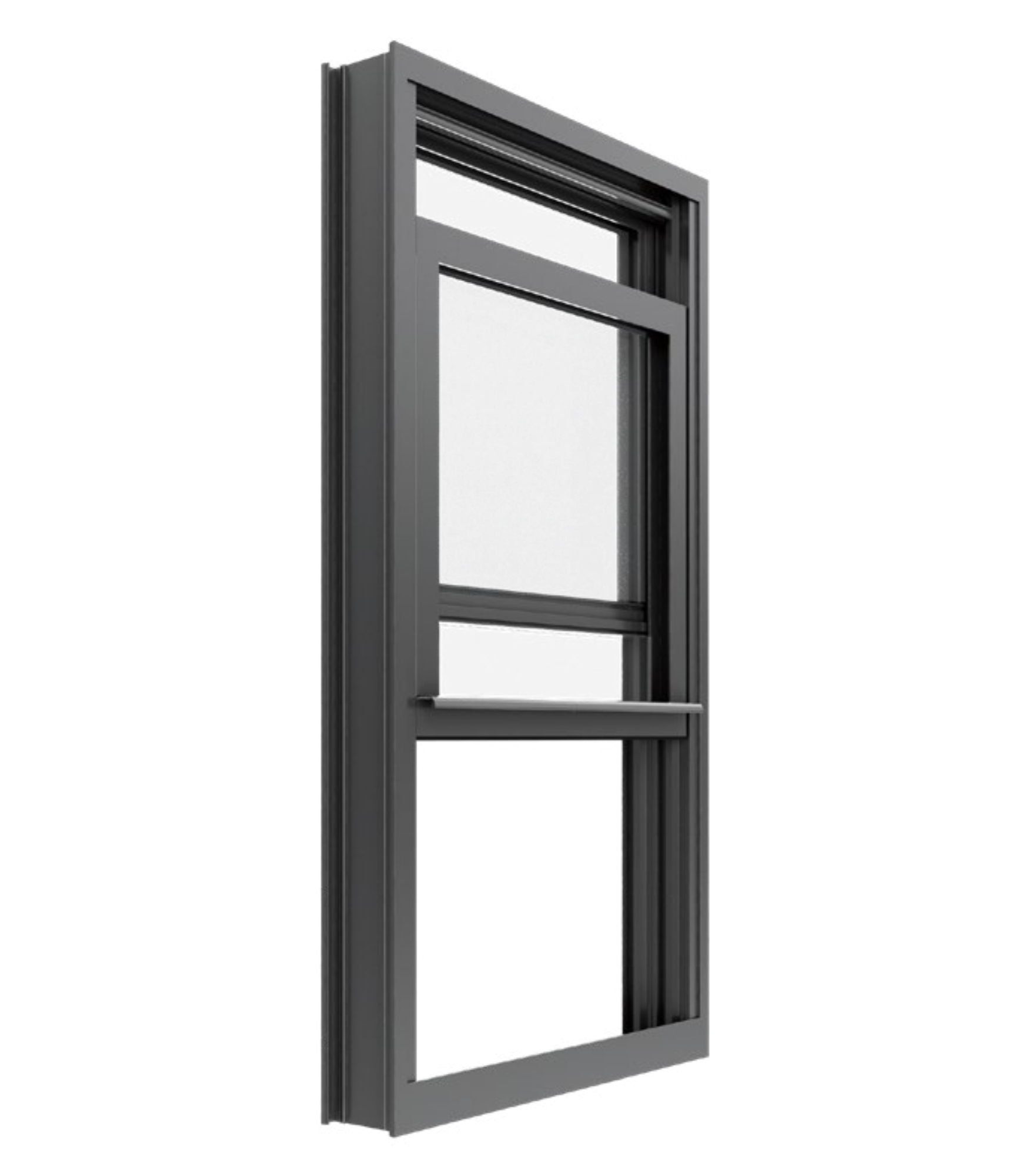

The VLX 500 is a single and double hung aluminum window system engineered around a simple idea: a window should move smoothly, seal tightly, and clean easily without ladders or professional help. Both sashes tilt inward on pivot hardware, so second-story maintenance in Lantana becomes a safe, indoor job.

Architecturally, the VLX 500 fits where vertical proportions matter. Single hung units with their fixed top sash suit traditional Florida ranch and bungalow styles common in neighborhoods near Lantana’s Old Dixie Highway corridor. Double hung configurations, with both sashes operable, excel in rooms where you want controlled ventilation from top or bottom, think kitchens, bathrooms, and bedrooms catching the southeast breeze off the Atlantic.

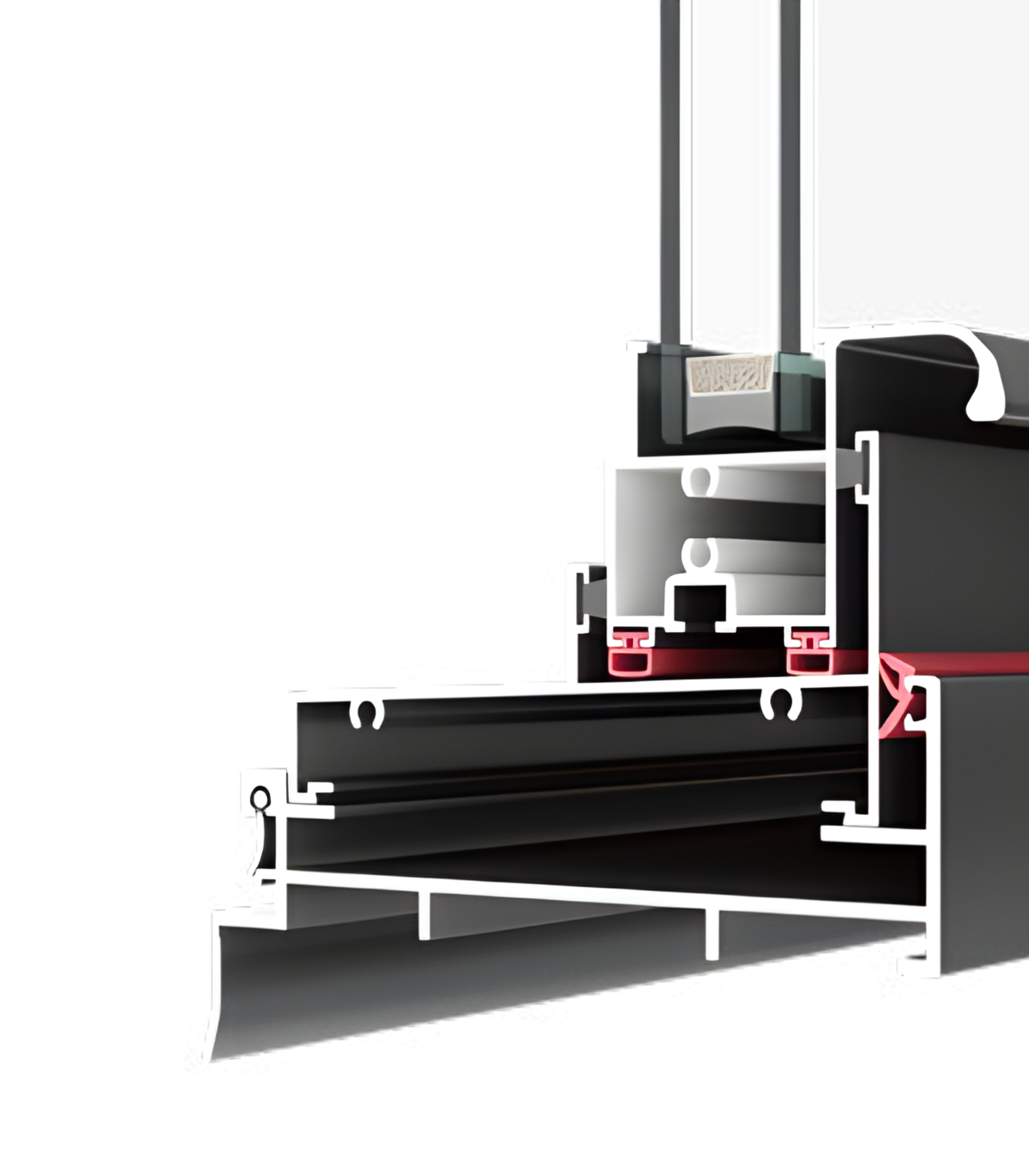

The extruded aluminum frame resists the salt-air corrosion that degrades lesser systems within five to seven years in coastal Palm Beach County. A thermal break separates interior and exterior metal surfaces, cutting conductive heat transfer that makes old aluminum frames sweat and bake. The result is a window that looks appropriately slim from the street but performs well beyond what vintage aluminum ever managed.

Technical Specifications

• Frame profile width: 2.36 inches, a proportion that balances structural rigidity with sightline minimalism
• Wall thickness: 0.079 inches, extruded for consistent wall strength without excess weight
• Glass options: Clear, Frosted, Low-E, Tempered, and Laminated (impact-rated)
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Half-Screen or Full Screen configuration
• Energy performance: NFRC-rated with thermal break technology
• Installation standard: AAMA 2400/2410 compliant
• Perimeter sealing: AAMA 812 low-expansion foam sealant on all joints
• Performance ratings: Certified for airtightness, waterproofing, mist prevention, and sound control
• Wind load: Rated for local climate requirements including Florida Building Code wind zones

Before

After

Performance Features

Thermal Efficiency

The VLX 500’s thermal break technology interrupts heat flow through the aluminum frame, earning NFRC ratings that matter in Lantana’s cooling-dominated climate. Lower U-factors mean your AC works less hard in July and August when the afternoon sun pounds west-facing walls.

Acoustic Performance

Laminated glass options and precise sash-to-frame tolerances reduce exterior noise transmission. In Lantana, where Ocean Avenue traffic and weekend marine activity create predictable sound patterns, this matters for bedrooms and home offices facing busy corridors.

Airtightness & Weather Seal

Multiple compression seals and interlocking sash rails maintain positive closure against air infiltration. The VLX 500 meets AAMA 2400/2410 standards for operable window air leakage, which directly affects your energy bills and indoor comfort during pollen season.

Waterproofing

Sill design with integrated drainage channels and sloped profiles moves wind-driven rain outward. AAMA 812 low-expansion foam sealant at perimeter joints creates a continuous barrier between frame and rough opening, the detail most DIY replacements get wrong.

Wind Resistance

Impact-resistant laminated glass options and reinforced frame corners meet Florida’s wind-load requirements for coastal and inland exposure zones. In Lantana, where tropical systems and afternoon thunderstorms deliver sustained pressure, this structural integrity isn’t optional.

Security & Hardware

Multi-point locking hardware engages at the sash rails, not just the center rail. Tempered and laminated glass options add forced-entry resistance. The tilt-in function releases only from interior hardware, so sashes stay secure when closed and locked.

Color & Glass Options

Six finish options let the VLX 500 adapt to Lantana’s architectural variety, from mid-century modest to contemporary coastal.

Premium Black and Pure White suit modern builds and clean renovations, the black especially striking against white stucco or natural stone facades common in newer Lantana construction. Anodized Silver carries an industrial honesty that works on commercial conversions and architectural minimalist homes. Bronze and Champagne warm up traditional Florida ranch and Mediterranean-influenced exteriors without the maintenance burden of actual wood windows. Teak Wood grain finish offers the aesthetic of tropical hardwood with aluminum’s structural immunity to rot and termites.

Glass selection should match exposure and use. Clear glass maximizes visible light in north-facing rooms or shaded courtyards. Frosted provides privacy for bathrooms and street-facing sidelights without blinds. Low-E coatings reflect infrared heat, essential for west and south walls in Lantana’s solar climate. Tempered glass meets safety code for large units and locations near doors or wet areas. Laminated glass delivers impact rating for hurricane protection zones and reduces sound transmission from nearby roadways.

Screen choice depends on how you ventilate. Half-screens cover the operable sash only, preserving sightlines through fixed glass. Full screens allow both sashes to open with insect protection, useful in double hung configurations where you want to draw cooler air through the top while exhausting warmer air below.

Installation by Sightline Windows & Doors Lantana in Lantana

Window performance lives or dies at installation. The VLX 500 is engineered to tight tolerances, and those tolerances require professional setting to maintain warranty coverage and rated performance. Sightline Windows & Doors Lantana installs every unit to AAMA 2400/2410 standards, the recognized benchmark for fenestration installation in residential and light commercial construction.

Our process starts with a pre-install inspection of every rough opening. We check for level sill, plumb jambs, and square corners. In Lantana’s older homes, especially the 1950s and 1960s concrete block construction near the Intracoastal, original openings often settle out of square. We correct before the window goes in, because shimming a crooked frame into a crooked hole produces binding sashes and failed seals within two years.

Setting is done with the frame level, plumb, and square, anchored through the jamb into structural framing, not just trim or sheathing. We apply AAMA 812 low-expansion foam sealant to all perimeter joints between frame and rough opening, creating an airtight, watertight transition that flexible caulk alone cannot achieve. This foam detail is where most handyman installations fail, water finds the gap, rot follows, and the ViewLux warranty is voided because improper installation voids manufacturer coverage.

After setting, we operate every sash through full travel, verify tilt-in release and re-engagement, check lock alignment, and run a water spray test on the exterior. We clean the glass, remove protective films, and haul away old units. You get a window that works the day we leave and keeps working through Lantana’s wet season heat, salt air, and tropical weather.

Florida Building Code requirements for impact protection and wind load vary by exact address in Lantana. We verify your zone and spec glass and anchoring accordingly, so your installation passes inspection and your certificate of completion is clean.

Frequently Asked Questions - VLX 500 Single & Double Hung Window

What is the lead time for the VLX 500 Single & Double Hung Window?

Lead time typically runs four to six weeks from final measurement and deposit, depending on glass type and finish selection. Laminated impact glass and custom sizes may extend slightly. Call (561) 461-2062 to check current production schedules for your specific configuration.

Does the VLX 500 qualify for energy tax credits?

The VLX 500 with Low-E glass and thermal break construction meets NFRC performance criteria that may qualify for federal energy efficiency tax credits depending on the tax year and your total installation scope. We provide certified NFRC labels and product performance documentation with every purchase. Consult your tax preparer for current credit eligibility, and call (561) 461-2062 to confirm the glass package we’re quoting qualifies.

What warranty comes with the Single & Double Hung Window?

ViewLux provides a limited lifetime warranty on the aluminum frame and sash, with twenty years on insulated glass seals and ten years on hardware and finishes, subject to proper installation by an authorized partner. Sightline Windows & Doors Lantana’s authorized status ensures your warranty registers without dispute. Improper installation by non-authorized contractors voids this coverage. Call (561) 461-2062 for complete warranty terms.

Can I customize the size?

Yes, the VLX 500 is available in standard and custom sizes to fit existing openings or new construction plans in Lantana. We measure on-site to 1/8-inch precision and factory-order units to your exact rough opening dimensions, including custom heights for non-standard block construction or architectural feature windows. Call (561) 461-2062 to schedule your free measurement.

How do I maintain aluminum frames?

Wash frames twice yearly with mild soap and water, rinse with fresh water to remove salt residue, and operate sashes through full travel to distribute lubricant on balance mechanisms. The tilt-in function lets you clean exterior glass from inside. Avoid abrasive cleaners or pressure washers, which can damage anodized or painted finishes. Call (561) 461-2062 if you notice binding, condensation between panes, or seal degradation, these indicate service needs.

Get a Quote - VLX 500 Single & Double Hung Window in Lantana

Ready to see how the VLX 500 fits your project? Sightline Windows & Doors Lantana provides free on-site measurements, written line-item quotes with no hidden costs, and installation by authorized ViewLux technicians who understand Lantana’s building stock and climate demands. Whether you’re replacing one failed unit or every window in your home, we’ll spec the right glass, finish, and screen configuration for your exact situation. Call (561) 461-2062 today to schedule your free estimate and get your project started.

Written by the team at Sightline Windows & Doors Lantana, serving Lantana, FL as an authorized ViewLux installation partner.
